浪涌发生器

浪涌发生器

这款浪涌发生器PG1275E是根据MIL-STD-1275E/GJB298-1986专门设计用于测试军用28 Vdc电路的浪涌和尖峰的敏感性。 最大永久电流为16 A或由400 A的可选外部二极管模块提供。 对于尖峰测试,电流限值由外部5μHLISN(人工网络)给出。 可以使用LISN的不同版本。 发生器可以由计算机通过RS232或USB接口完全控制

SPECIFICATIONS

TypePG1275E
Transients supportedinjected spikes and injected surges
EUT operating voltage28 Vdc
EUT operating current (spikes)depending on the LISN
EUT operating current (surges)16 A (400 A with the DM400 diode module)
Surge charging voltageup to 200 V
Spike charging voltageup to ± 500 V
Output connectorsBNC and 4 mm safety sockets
Remote controlRS232 and USB
Operating temperature0 – 40 oC
Power supply210 - 264 Vac / 50 - 60 Hz / 100 VA
Dimensions610 x 450 x 200 mm (L x W x H)
Weight22 kg

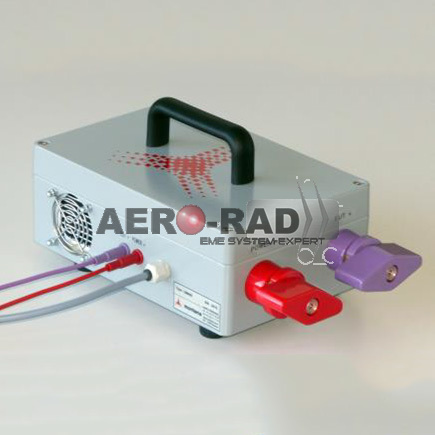

TypeDM400
Descriptionexternal diode module
Maximum continuous current400 A
Connectorlarge binding posts
Dimensions350 x 180 x 170 mm (L x W x H)
Weight1.6 kg
